Artificial jellyfish swims in a heartbeat

Creation is an amalgam of silicone polymer and heart muscle cells

image of biohybrid jellyfish

A still of the artificial jellyfish "swimming" in container of ocean-like salt water. Note: the color and contrast of the artificial jellyfish has been digitally enhanced to make it easier to view. (Image courtesy of Harvard University and Caltech.)

Download Image

Cambridge, Mass. — July 22, 2012 — Using recent advances in marine biomechanics, materials science, and tissue engineering, a team of researchers at Harvard University and the California Institute of Technology (Caltech) have turned inanimate silicone and living cardiac muscle cells into a freely swimming “jellyfish.”

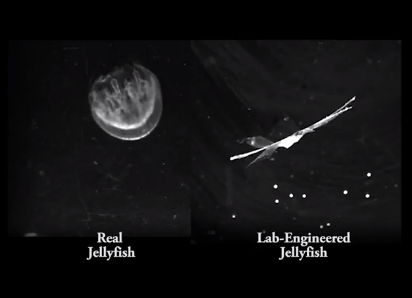

Movie 1: A movie of the artificial jellyfish, dubbed “Medusoid,” swimming.


The finding serves as a proof of concept for reverse engineering a variety of muscular organs and simple life forms. It also suggests a broader definition of what counts as synthetic life in an emerging field that has primarily focused on replicating life’s building blocks.

The researchers’ method for building the tissue-engineered jellyfish, dubbed “Medusoid,” was published in a Nature Biotechnology paper on July 22.

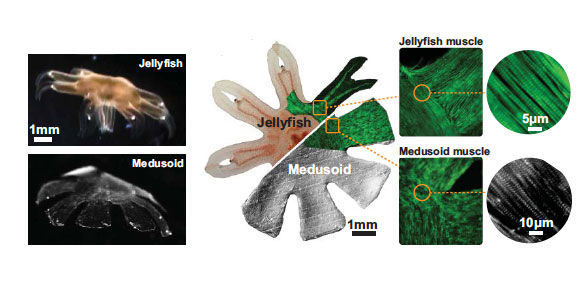

Figure 1: (left) The Body design of real jellyfish (top) and the free-swimming Medusoid construct (bottom); (middle) a split view of the real jellyfish versus the artificial jellyfish; (right) jellyfish 2D muscle architecture (top) was reverse-engineered in the Medusoids (bottom).


An expert in cell- and tissue-powered actuators, coauthor Kevin Kit Parker has previously demonstrated bioengineered constructs that can grip, pump, and even walk. The inspiration to raise the bar and mimic a jellyfish came out of his own frustration with the state of the cardiac field.

Similar to the way a human heart moves blood throughout the body, jellyfish propel themselves through the water by pumping. In figuring out how to take apart and then rebuild the primary motor function of a jellyfish, the aim was to gain new insights into how such pumps really worked.

“It occurred to me in 2007 that we might have failed to understand the fundamental laws of muscular pumps,” says Parker, Tarr Family Professor of Bioengineering and Applied Physics at the Harvard School of Engineering and Applied Sciences (SEAS) and a Core Faculty Member at the Wyss Institute for Biologically Inspired Engineering at Harvard. “I started looking at marine organisms that pump to survive. Then I saw a jellyfish at the New England Aquarium and I immediately noted both similarities and differences between how the jellyfish and the human heart pump.”

To build the Medusoid, Parker collaborated with Janna Nawroth, a doctoral student in biology at Caltech and lead author of the study, who performed the work as a visiting researcher in Parker’s lab. They also worked with Nawroth’s adviser, John Dabiri, a professor of aeronautics and bioengineering at Caltech, who is an expert in biological propulsion.

“A big goal of our study was to advance tissue engineering," says Nawroth. “In many ways, it is still a very qualitative art, with people trying to copy a tissue or organ just based on what they think is important or what they see as the major components—without necessarily understanding if those components are relevant to the desired function or without analyzing first how different materials could be used.”

It turned out that jellyfish, believed to be the oldest multi-organ animals in the world, were an ideal subject, as they use muscles to pump their way through water, and their basic morphology is similar to that of a beating human heart.

To reverse engineer a medusa jellyfish, the investigators used analysis tools borrowed from the fields of law enforcement biometrics and crystallography to make maps of the alignment of subcellular protein networks within all of the muscle cells within the animal. They then conducted studies to understand the electrophysiological triggering of jellyfish propulsion and the biomechanics of the propulsive stroke itself.

Based on such understanding, it turned out that a sheet of cultured rat heart muscle tissue that would contract when electrically stimulated in a liquid environment was the perfect raw material to create an ersatz jellyfish. The team then incorporated a silicone polymer that fashions the body of the artificial creature into a thin membrane that resembles a small jellyfish, with eight arm-like appendages.

Using the same analysis tools, the investigators were able to quantitatively match the subcellular, cellular, and supracellular architecture of the jellyfish musculature with the rat heart muscle cells.

The artificial construct was placed in container of ocean-like salt water and shocked into swimming with synchronized muscle contractions that mimic those of real jellyfish. (In fact, the muscle cells started to contract a bit on their own even before the electrical current was applied.

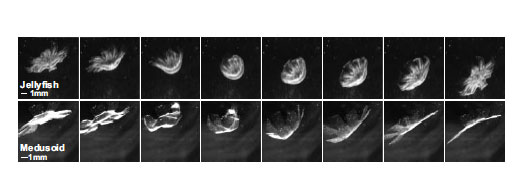

Figure 2: (top) Parallel frame capture of the swimming behavior of a real jellyfish compared to (bottom) the Medusoid construct.


“I was surprised that with relatively few components—a silicone base and cells that we arranged—we were able to reproduce some pretty complex swimming and feeding behaviors that you see in biological jellyfish,” says Dabiri.

Their design strategy, they say, will be broadly applicable to the reverse engineering of muscular organs in humans.

“As engineers, we are very comfortable with building things out of steel, copper, concrete," says Parker. “I think of cells as another kind of building substrate, but we need rigorous quantitative design specs to move tissue engineering to a reproducible type of engineering. The jellyfish provides a design algorithm for reverse engineering an organ's function and developing quantitative design and performance specifications. We can complete the full exercise of the engineer's design process: design, build, and test.”

Movie 2: The researchers explain how they created the artificial jellyfish.


In addition to advancing the field of tissue engineering, Parker adds that he took on the challenge of building a creature to challenge the traditional view of synthetic biology which is “focused on genetic manipulations of cells.” Instead of building just a cell, he sought to “build a beast.”

Looking forward, the researchers aim to further evolve the artificial jellyfish, allowing it to turn and move in a particular direction, and even incorporating a simple “brain” so it can respond to its environment and replicate more advanced behaviors like heading toward a light source and seeking energy or food.

Along with Parker, Nawroth, and Dabiri, contributors to the study included Hyungsuk Lee, Adam W. Feinberg, Crystal M. Ripplinger, Megan L. McCain, and Anna Grosberg, all at Harvard.

Funding for the study included grants from the Wyss Institute for Biologically Inspired Engineering at Harvard, the National Science Foundation (NSF), the National Institutes of Health, the Office of Naval Research, and the NSF Program in Fluid Dynamics.
